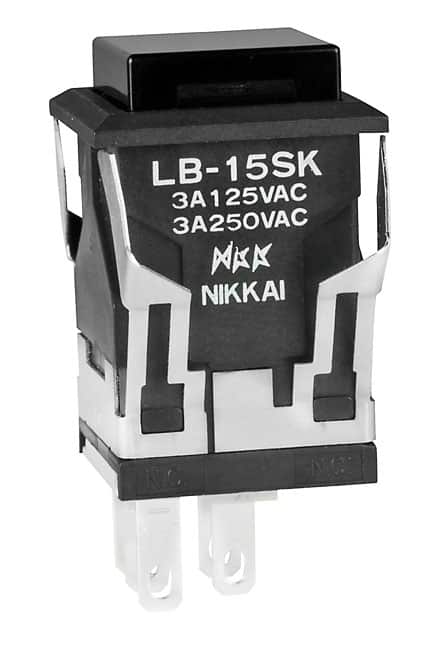

LB15SKW01-1C-A

Standard Size Snap-In Pushbutton

LB Series
Standard Size Snap-In Pushbutton

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
LB15SKW01-1C-A
Description
Standard Size Snap-In Pushbutton
Name
Pushbutton
Series
LB
Poles
SPDT
Circuits
On-Mom
Current Rating
3A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Square, Button
Actuator Cap Color
Black
illumination color
LED, Red
illumination voltage
1.9 VDC
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
ingress protection
IP65
panel cutout dimensions
Square - 16.20mm_
Rating
3
Illumination
Illuminated
