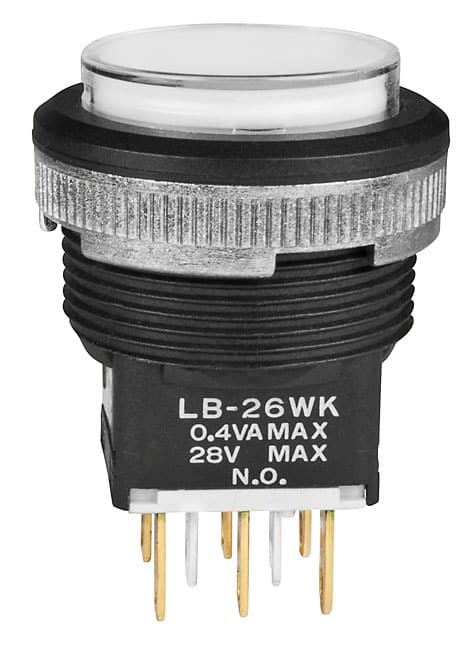

LB26WKG01-12-JB

Standard Size Panel Seal Pushbuttons

LB Series
Standard Size Panel Seal Pushbuttons

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
LB26WKG01-12-JB
Description
Standard Size Panel Seal Pushbuttons
Name
Pushbutton
Series
LB
Poles
DPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Round, Button
Actuator Cap Color
Clear (White Filter/Diffuser)
illumination color
Incandescent, White
illumination voltage
12 VAC
Mounting Type
Panel Mount, Front
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
ingress protection
IP65 - Dust Tight, Water Resistant
panel cutout dimensions
Circular - 22.00mm Dia
Rating
0.4
Illumination
Illuminated
