LP0115CCKW015FA

SHORT BODY PUSHBUTTONS/SPOT ILLUMINATED

LP01 Series
SHORT BODY PUSHBUTTONS/SPOT ILLUMINATED

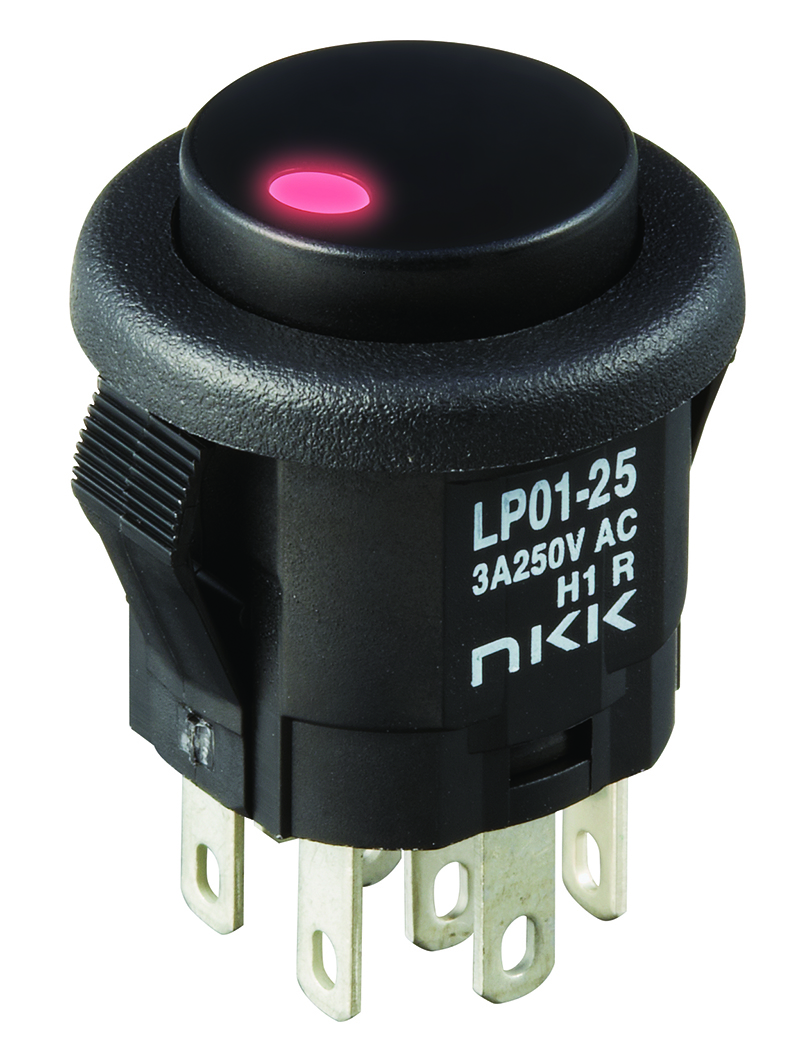

Image for reference only. Please see product specifications.
General Specifications
Part No.
LP0115CCKW015FA
Description
SHORT BODY PUSHBUTTONS/SPOT ILLUMINATED
Name
Pushbutton
Series
LP01
Poles
SPDT
Circuits
On-Mom
Current Rating
3A
Actuator Type
Round, Button
Actuator Cap Color
Black
illumination color
LED, Green
illumination voltage
2.1 VDC
Mounting Type
Panel Mount, Front
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
panel cutout dimensions
Circular - 16.00mm Dia
Rating
3
Illumination
Illuminated
