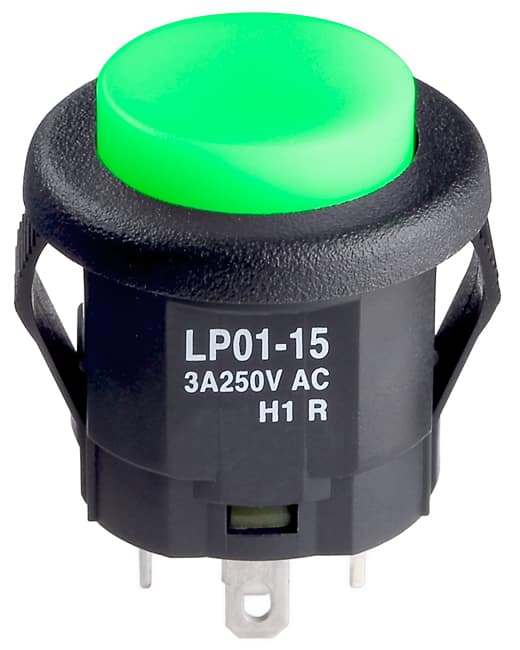

LP0115CMKW015FB

Short Body Pushbuttons

LP01 Series
Short Body Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
LP0115CMKW015FB
Description
Short Body Pushbuttons
Name
Pushbutton
Series
LP01
Poles
SPDT
Circuits
On-Mom
Current Rating
3A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Round, Button
Actuator Cap Color
White
illumination color
LED, Green
illumination voltage
2.1 VDC
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
panel cutout dimensions
Circular - 17.30mm Dia
Rating
3
Illumination
Illuminated
