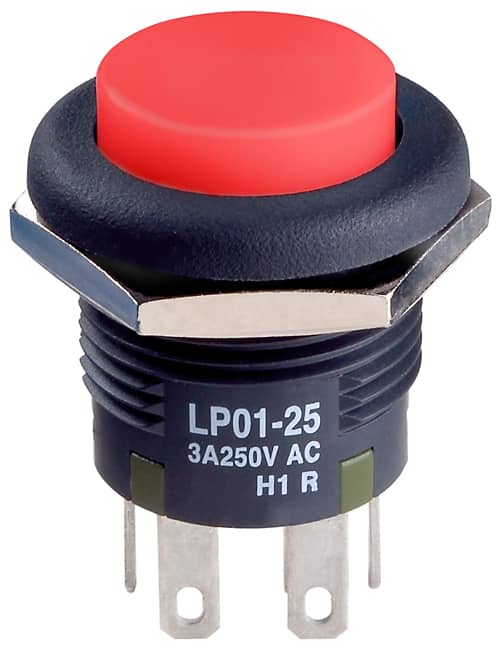

LP0125CCKW015CB

Short Body Pushbuttons

LP01 Series
Short Body Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
LP0125CCKW015CB
Description
Short Body Pushbuttons
Name
Pushbutton
Series
LP01
Poles
DPDT
Circuits
On-Mom
Current Rating
3A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Round, Button
Actuator Cap Color
White
illumination color
LED, Red
illumination voltage
1.95 VDC
Mounting Type
Panel Mount, Front
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
panel cutout dimensions
Circular - 16.00mm Dia
Rating
3
Illumination
Illuminated
