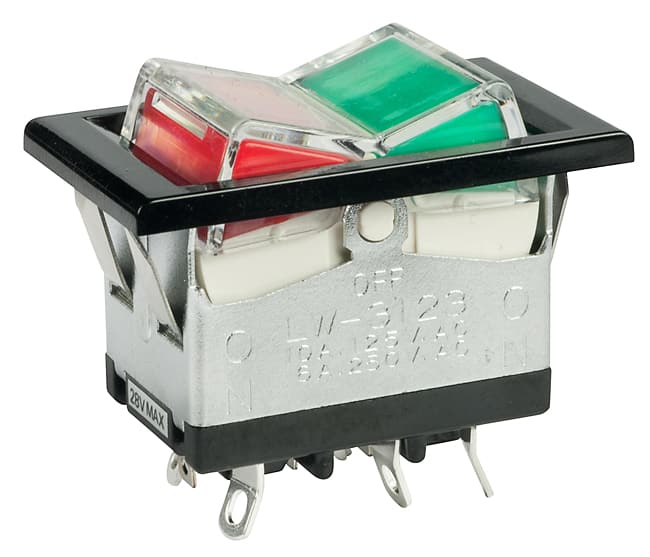

LW3123/U-L4CF-A

Power Rated Snap-in Rocker

LW Series
Power Rated Snap-in Rocker

Not recommended for new designs.
General Specifications
Part No.
LW3123/U-L4CF-A
Description
Power Rated Snap-in Rocker
Name
Rockers
Series
LW
Status
Active
Poles
DPDT
Circuits
On-Off-On
Current Rating
10A (AC)
Rating (AC)
125V
Actuator Type
Concave (Standard V) - Illuminated
Actuator Cap Color
Clear (Red, Green Filter/Diffuser)
Actuator Marking
No Marking
illumination voltage
28 VAC
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder Lug
panel cutout dimensions
Rectangular - 32.00mm x 19.80mm
Rating
10
Illumination
Illuminated
