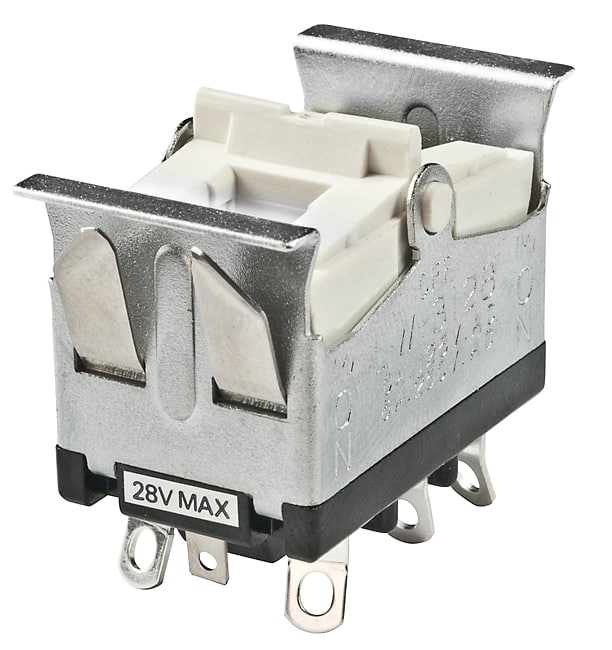

LW3128/U

SWITCH ROCKER DPDT 10A 125V

LW Series
SWITCH ROCKER DPDT 10A 125V

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
LW3128/U
Description
SWITCH ROCKER DPDT 10A 125V
Name
Rocker
Series
LW
Status
Active
Poles
DPDT
Circuits
Mom-Off-Mom
Current Rating
10A (AC)
Rating (AC)
125V
Actuator Type
Actuator Arm, Cap Required
Actuator Marking
Varies by Cap
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder Lug
panel cutout dimensions
Rectangular - 32.00mm x 19.80mm
Rating
10
Illumination
Non-Illuminated
