Part No.
M2012E2S1G45
Description

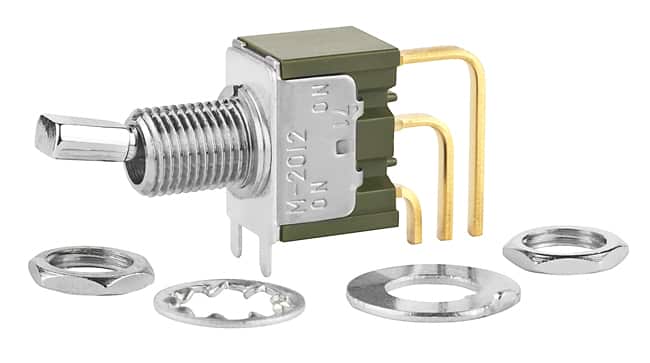

Angle PC Mount Miniature Toggles
Name
Toggle
Series
M
Poles
SPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Flatted
actuator length
6.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount, Right Angle, Vertical
Termination Style
PC Pin
panel cutout dimensions
Circular - 6.50mm Dia
bushing thread
1/4/40
Features
Epoxy Sealed Terminals
Rating
0.4
Product Change Notices
No.
Current Part Num.
New Part Num.
Difference
New PN Available to Order
PDF
400
M2012E2S1G45
N/A
Discontinued
N/A
