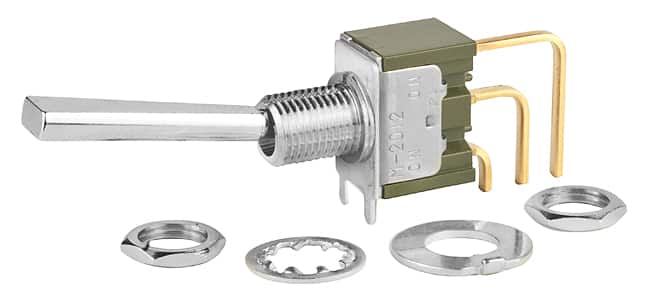

M2012E4S1G40

SWITCH TOGGLE SPDT 0.4VA 28V

M Series
SWITCH TOGGLE SPDT 0.4VA 28V

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
M2012E4S1G40
Description
SWITCH TOGGLE SPDT 0.4VA 28V
Name
Toggle
Series
M
Poles
SPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Flatted
actuator length
21.30mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount, Right Angle, Vertical
Termination Style
PC Pin
panel cutout dimensions
Circular - 6.50mm Dia
bushing thread
1/4/40
Features
Epoxy Sealed Terminals
Rating
0.4
