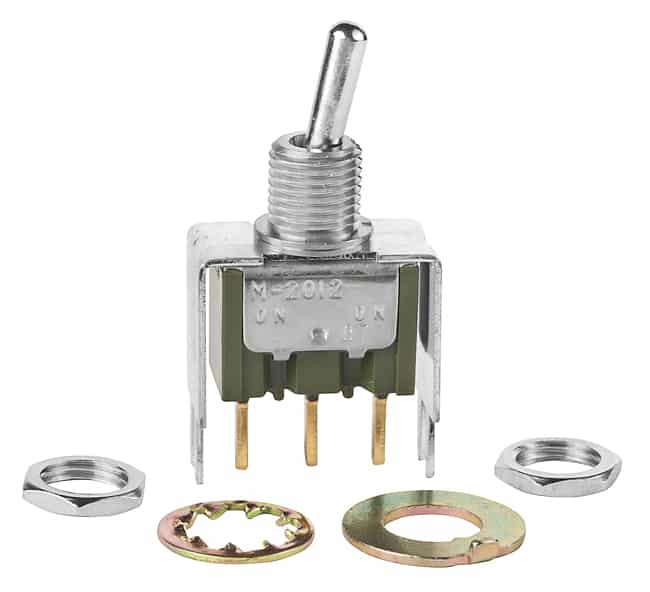

M2012S3A1G13

Bracket PC Mount Miniature Toggle

M Series
Bracket PC Mount Miniature Toggle

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
M2012S3A1G13
Description
Bracket PC Mount Miniature Toggle
Name
Toggles
Series
M
Poles
SPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Standard Round
actuator length
8.28mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
PC Pin
panel cutout dimensions
Circular - 6.50mm Dia
bushing thread
1/4/40
Features
Epoxy Sealed Terminals
Rating
0.4
Product Change Notices
No.
Current Part Num.
New Part Num.
Difference
New PN Available to Order
PDF
400
M2012S3A1G13
N/A
Discontinued
N/A
