Product Change NoticesGeneral Specifications

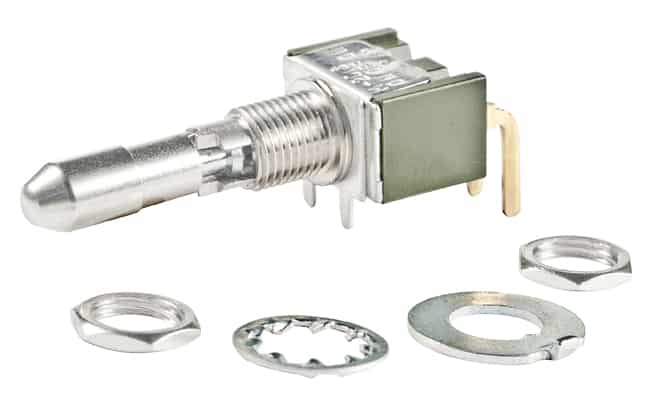

Part No.
M2013LL1G30
Description
Angle PC Mount Miniature Toggle
Name
Toggles
Series
M
Poles
SPDT
Circuits
On-Off-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Locking Lever
actuator length
16.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount, Right Angle
Termination Style
PC Pin
panel cutout dimensions
Circular - 6.50mm Dia
bushing thread
1/4/40
Features
Epoxy Sealed Terminals
Rating
0.4
