Part No.
M2013SA2W03
Description

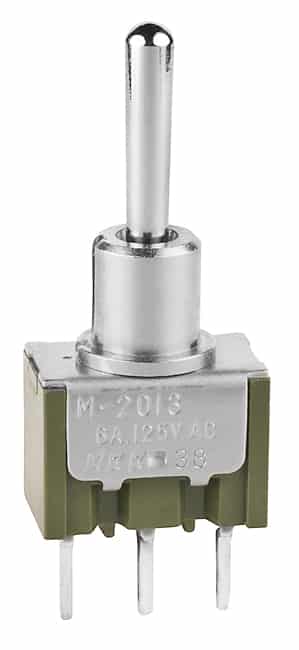

Bushing Mount Miniature Toggle
Name
Toggles
Series
M
Poles
SPDT
Circuits
On-Off-On
Current Rating
6A (AC), 3A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
12.27mm
Illumination
Non-Illuminated
Mounting Type
Through Hole
Termination Style
PC Pin
bushing thread
Unthreaded
Features
Epoxy Sealed Terminals
Rating
6
