Not recommended for new designs.
3D CAD Model
Download Specifications
Custom Assembly
Check Inventory
Sample Request Form
Environmental Compliance
Product Change NoticesGeneral Specifications
Part No.

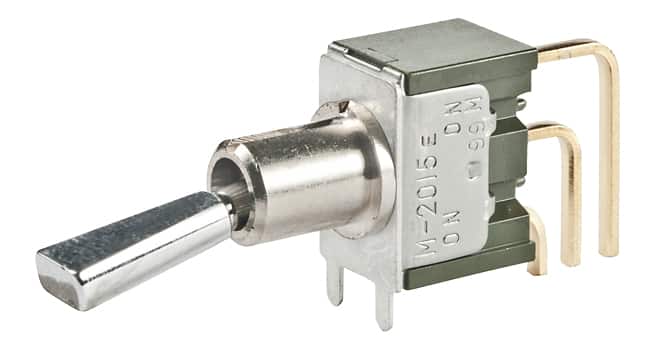

M2015ES2G45
Description
Angle PC Mount Miniature Toggles
Name
Toggle
Series
M
Poles
SPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Flatted
actuator length
11.40mm
Illumination
Non-Illuminated
Mounting Type
Through Hole, Right Angle, Vertical
Termination Style
PC Pin
bushing thread
Unthreaded
Features
Epoxy Sealed Terminals
Rating
0.4
