Part No.

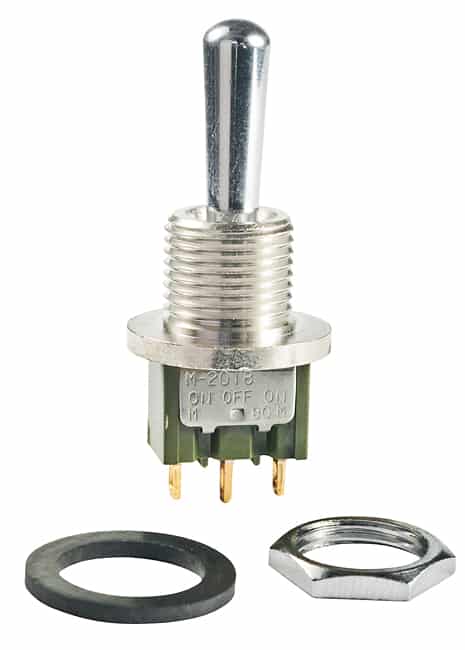

M2018B2B3G01
Description
Bushing Mount Miniature Toggles
Name
Toggle
Series
M
Poles
SPDT
Circuits
Mom-Off-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Standard Round
actuator length
17.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
ingress protection
IP67
Features
Epoxy Sealed Terminals
Rating
0.4
