Product Change NoticesGeneral Specifications
Part No.
M2022SS4G03
Description

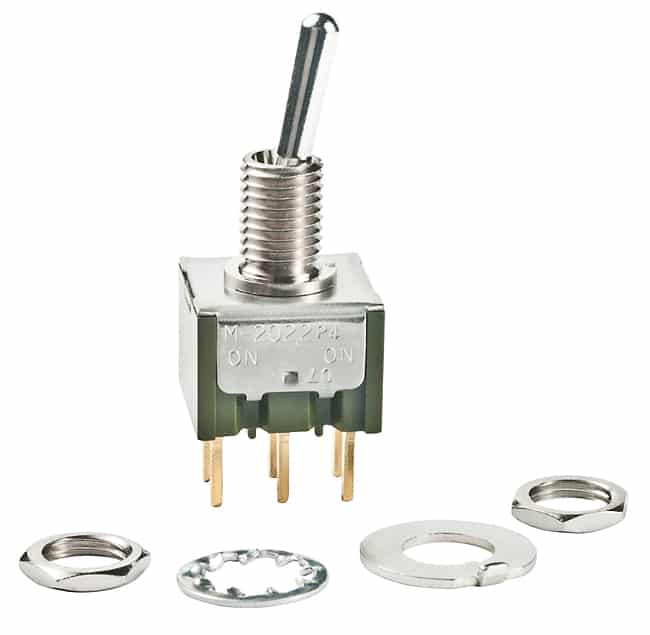

Bushing Mount Miniature Toggle
Name
Toggles
Series
M
Poles
DPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Standard Round
actuator length
10.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
PC Pin
panel cutout dimensions
Circular - 6.50mm Dia
bushing thread
M6 x 0.75
Features
Epoxy Sealed Terminals
Rating
0.4
