M2042LL2W03

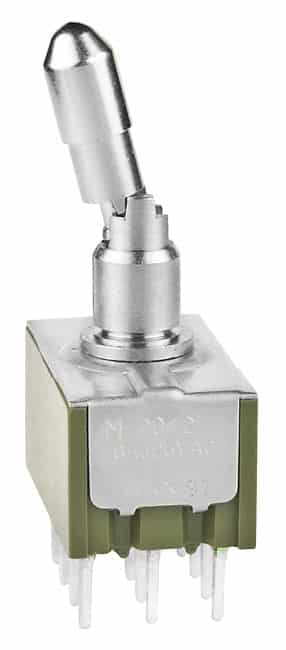

Bushing Mount Miniature Toggle

M Series
Bushing Mount Miniature Toggle

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
M2042LL2W03
Description
Bushing Mount Miniature Toggle
Name
Toggles
Series
M
Poles
4PDT
Circuits
On-On
Current Rating
6A (AC), 4A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Locking Lever
actuator length
16.50mm
Illumination
Non-Illuminated
Mounting Type
Through Hole
Termination Style
PC Pin
bushing thread
Unthreaded
Features
Epoxy Sealed Terminals
Rating
6
Product Change Notices
No.
Current Part Num.
New Part Num.
Difference
New PN Available to Order
PDF
400
M2042LL2W03
MN42LL2W03
Recommended Alternative
04/2024
