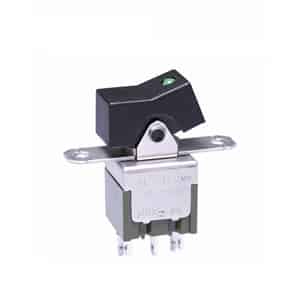

M2112NFW01

LED Tipped Rockers and Paddles

M2100 Series
LED Tipped Rockers and Paddles

Not recommended for new designs.
General Specifications
Part No.
M2112NFW01
Description
LED Tipped Rockers and Paddles
Name
Rocker
Series
M2100
Status
Active
Poles
SPDT
Circuits
On-On
Current Rating
6A (AC), 3A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Concave (Standard V) - Illuminated
Actuator Cap Color
Black
Actuator Marking
No Marking
illumination voltage
2.2 VDC
Mounting Type
Panel Mount, Flange
Termination Style
Solder Lug
panel cutout dimensions
Rectangular - 17.80mm x 10.10mm
Rating
6
Illumination
Illuminated
Product Change Notices
No.
Current Part Num.
New Part Num.
Difference
New PN Available to Order
PDF
400
M2112NFW01
Direct Replacement
January 15, 2024
