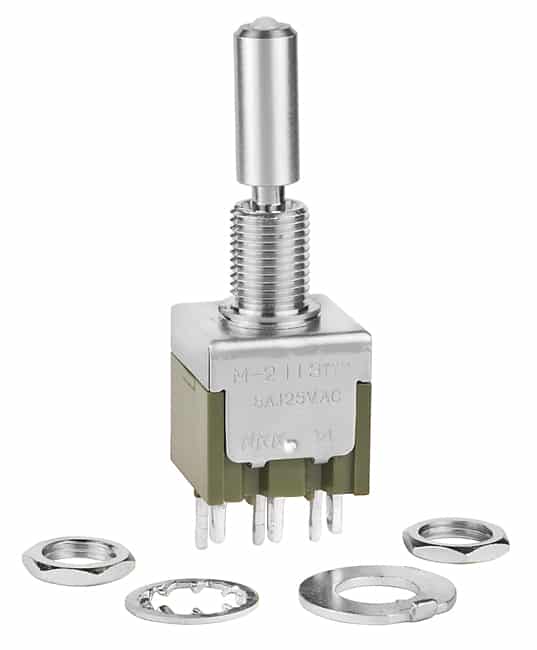

M2113TEFW01

SWITCH TOGGLE SPDT 6A 125V

M2100 Series
SWITCH TOGGLE SPDT 6A 125V

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
M2113TEFW01
Description
SWITCH TOGGLE SPDT 6A 125V
Name
Toggle
Series
M2100
Poles
SPDT
Circuits
On-Off-On
Current Rating
6A (AC), 3A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
14.70mm
Illumination
Illuminated
illumination type color
LED, Green/Yellow
illumination voltage nominal
2.1 VDC
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 6.50mm Dia
bushing thread
1/4/40
Features
Epoxy Sealed Terminals
Rating
6
Product Change Notices
No.
Current Part Num.
New Part Num.
Difference
New PN Available to Order
PDF
400
M2113TEFW01
N/A
Discontinued
N/A
