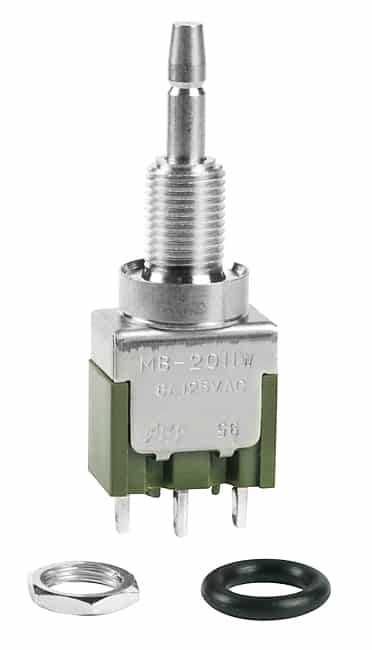

MB2011LD3W01

Bushing Mount Miniature Pushbuttons

MB2000 Series
Bushing Mount Miniature Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MB2011LD3W01
Description
Bushing Mount Miniature Pushbuttons
Name
Pushbutton
Series
MB2000
Poles
SPDT
Circuits
On-Mom
Current Rating
6A (AC), 3A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Plunger for Cap
Mounting Type
Panel Mount, Rear
Termination Style
Solder Lug
ingress protection
IP67
Features
Epoxy Sealed Terminals
panel cutout dimensions
Circular - 6.50mm Dia
Rating
6
Illumination
Non-Illuminated
Product Change Notices
No.
Current Part Num.
New Part Num.
Difference
New PN Available to Order
PDF
400
MB2011LD3W01
N/A
Discontinued
N/A
