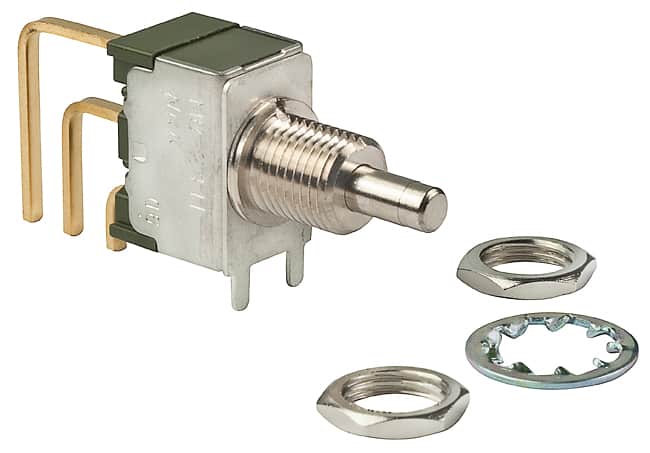

MB2411A1G40

Snap-Action Bracket PC Mount Pushbuttons

MB2400 Series
Snap-Action Bracket PC Mount Pushbuttons

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MB2411A1G40
Description
Snap-Action Bracket PC Mount Pushbuttons
Name
Pushbutton
Series
MB2400
Poles
SPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Plunger for Cap
Mounting Type
Panel Mount, Right Angle, Vertical, Rear
Termination Style
PC Pin
Features
Epoxy Sealed Terminals
panel cutout dimensions
Circular - 6.50mm Dia
Rating
0.4
Illumination
Non-Illuminated
Product Change Notices
No.
Current Part Num.
New Part Num.
Difference
New PN Available to Order
PDF
400
MB2411A1G40
N/A
Discontinued
N/A
