MBN15SA2W31

SWITCH PUSHBUTTON SPDT 3A 125V

MB2000 Series
SWITCH PUSHBUTTON SPDT 3A 125V

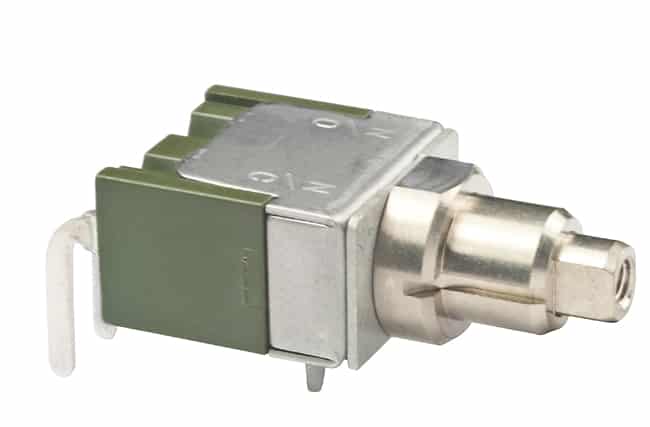

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MBN15SA2W31
Description
SWITCH PUSHBUTTON SPDT 3A 125V
Name
Pushbutton
Series
MB2000
Poles
SPDT
Circuits
On-Mom
Current Rating
3A (AC), 2A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Plunger for Cap
illumination color
0
illumination voltage
0
Mounting Type
Through Hole, Right Angle
Termination Style
PC Pin
Features
Epoxy Sealed Terminals
Rating
6
Illumination
Non-Illuminated
