MBNF15S4G01

SWITCH PUSHBUTTON SPDT 0.4VA 28V

MB2500 Series
SWITCH PUSHBUTTON SPDT 0.4VA 28V

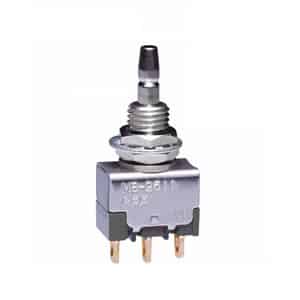

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MBNF15S4G01
Description
SWITCH PUSHBUTTON SPDT 0.4VA 28V
Name
Pushbutton
Series
MB2500
Poles
SPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Plunger for Cap
illumination color
0
illumination voltage
0
Mounting Type
Panel Mount, Rear
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
panel cutout dimensions
Circular - 6.50mm Dia
Rating
0.4
Illumination
Non-Illuminated
