MBNR25E1W01

Snap-Action Bushing Mount Pushbutton

MB2400 Series
Snap-Action Bushing Mount Pushbutton

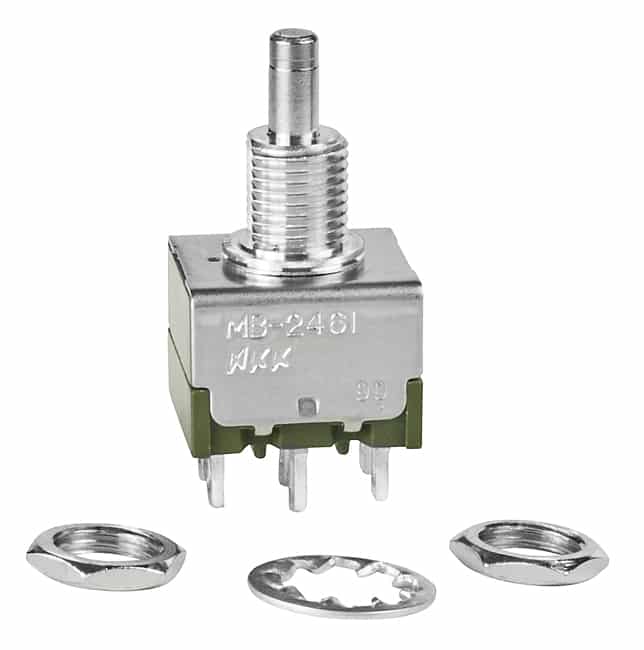

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MBNR25E1W01
Description
Snap-Action Bushing Mount Pushbutton
Name
Pushbutton
Series
MB2400
Poles
DPDT
Circuits
On-Mom
Current Rating
2A (AC)
Rating (AC)
125V
Actuator Type
Plunger for Cap
illumination color
0
illumination voltage
0
Mounting Type
Panel Mount, Rear
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
panel cutout dimensions
Circular, D-flat, - 6.50mm Dia
Rating
3
Illumination
Non-Illuminated
