MN11LL1W01

SWITCH TOGGLE SPST 6A 125V

M Series
SWITCH TOGGLE SPST 6A 125V

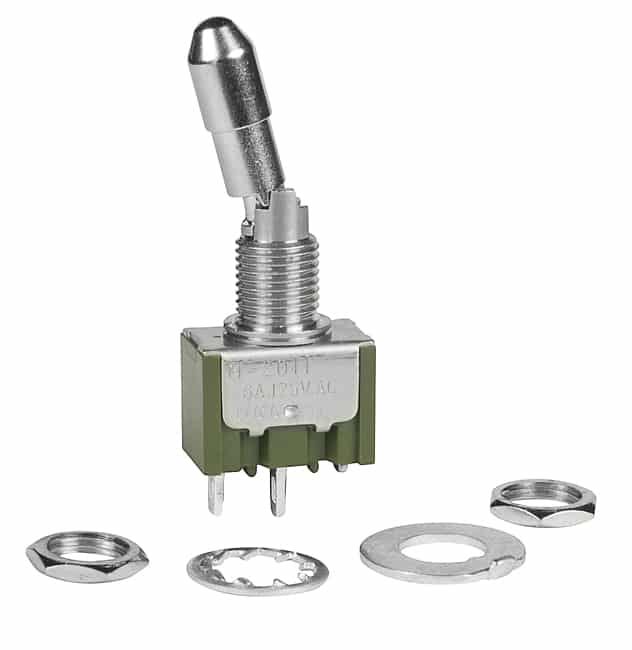

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MN11LL1W01
Description
SWITCH TOGGLE SPST 6A 125V
Name
Toggle
Series
M
Poles
SPST
Circuits
On-Off
Current Rating
6A (AC), 4A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Locking Lever
actuator length
16.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 6.50mm Dia
bushing thread
1/4-40
Features
Epoxy Sealed Terminals
Rating
6
