MN22SS2W30

Angle PC Mount Miniature Toggle

M Series

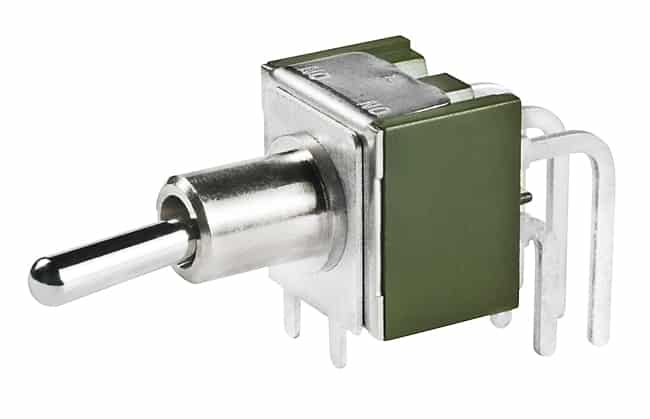

Angle PC Mount Miniature Toggle

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MN22SS2W30
Description
Angle PC Mount Miniature Toggle
Name
Toggles
Series
M
Poles
DPDT
Circuits
On-On
Current Rating
6A (AC), 4A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
10.50mm
Illumination
Non-Illuminated
Mounting Type
Through Hole, Right Angle
Termination Style
PC Pin
bushing thread
Unthreaded
Features
Epoxy Sealed Terminals
Rating
6
