MNL12JFW01

SWITCH ROCKER SPDT 6A 125V

M2100 Series
SWITCH ROCKER SPDT 6A 125V

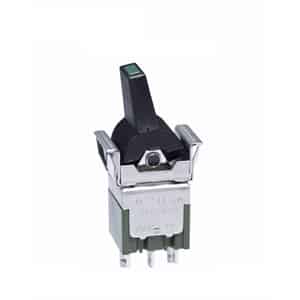

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MNL12JFW01
Description
SWITCH ROCKER SPDT 6A 125V
Name
Rocker
Series
M2100
Status
Active
Poles
SPDT
Circuits
On-On
Current Rating
6A (AC), 3A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Paddle - Illuminated
Actuator Cap Color
Black
Actuator Marking
No Marking
illumination color
0
illumination voltage
0
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder Lug
panel cutout dimensions
Rectangular - 15.90mm x 13.10mm
Rating
6
Illumination
Illuminated
