MNL12TCFW13

LED Tipped Rocker and Paddle

M2100 Series
LED Tipped Rocker and Paddle

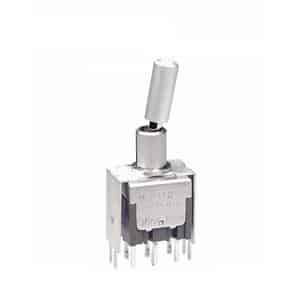

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MNL12TCFW13
Description
LED Tipped Rocker and Paddle
Name
Toggles
Series
M2100
Poles
SPDT
Circuits
On-On
Current Rating
6A (AC), 3A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
14.70mm
Illumination
Illuminated
illumination type color
LED, Red/Green
illumination voltage nominal
1.9 VDC
Mounting Type
Through Hole
Termination Style
PC Pin
bushing thread
Unthreaded
Features
Epoxy Sealed Terminals
Rating
6
