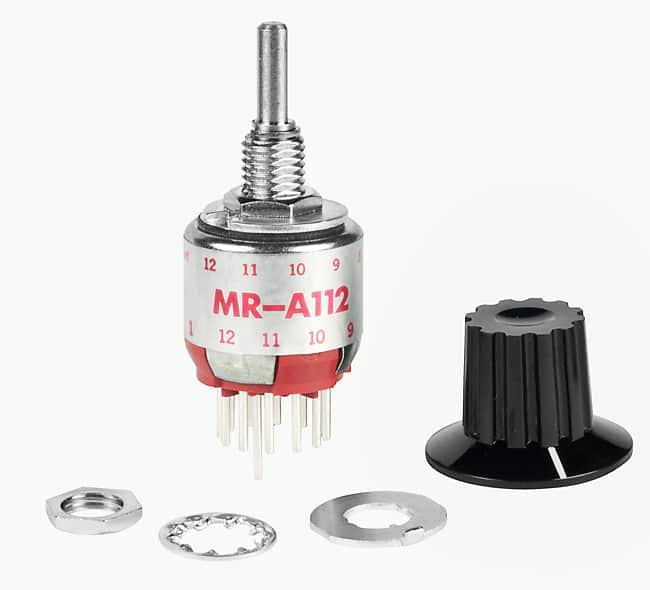

MRA112-A

Half-Inch Diameter Process Sealed Rotaries

MR Series
Half-Inch Diameter Process Sealed Rotaries

Not recommended for new designs.
General Specifications
Part No.
MRA112-A
Description
Half-Inch Diameter Process Sealed Rotaries
Name
Rotary
Series
MR
Poles
SP12T
no positions
2 ~ 12
index stops
Adjustable
no decks
1
no poles per deck
1
contact timing
Non-Shorting (BBM)
Current Rating
250mA (AC)
Rating (AC)
125V
Actuator Type
Knob
actuator length
13.00mm
angle of throw
30°
contact material
Copper
contact finish
Silver
Mounting Type
Panel Mount, Through Hole
Termination Style
PC Pin
Features
Process Sealed
depth behind panel
17.00mm
Rating
0.25
Product Change Notices
No.
Current Part Num.
New Part Num.
Difference
New PN Available to Order
PDF
400
MRA112-A
Direct Replacement
July 3, 2023
