MRAN206

Half-Inch Diameter Process Sealed Rotary

MR Series
Half-Inch Diameter Process Sealed Rotary

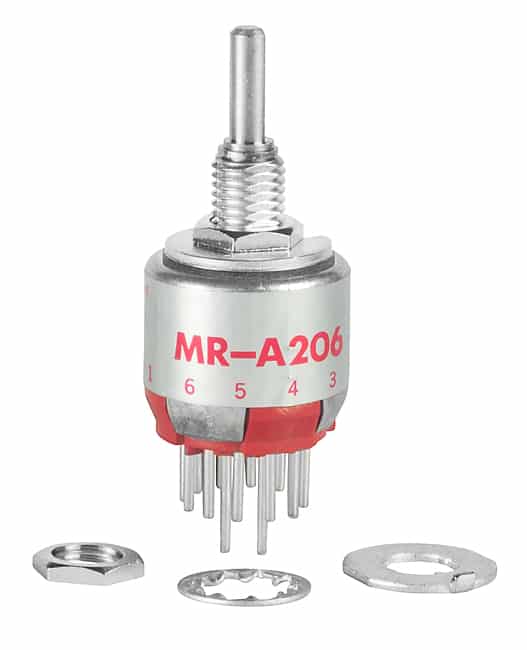

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MRAN206
Description
Half-Inch Diameter Process Sealed Rotary
Name
Rotary
Series
MR
Poles
DP6T
no positions
2~6
index stops
Adjustable
no decks
1
no poles per deck
2
contact timing
Non-Shorting (BBM)
Current Rating
250mA (AC)
Rating (AC)
125V
Rating (DC)
28V
Actuator Type
Flatted (3.17mm Dia)
actuator length
10.00mm
angle of throw
30°
contact material
Copper
contact finish
Silver
Mounting Type
Panel Mount, Through Hole
Termination Style
PC Pin
Features
Process Sealed
depth behind panel
17.00mm
Rating
0.25
