MRAN206-BH

Half-Inch Diameter Process Sealed Rotaries

MR Series
Half-Inch Diameter Process Sealed Rotaries

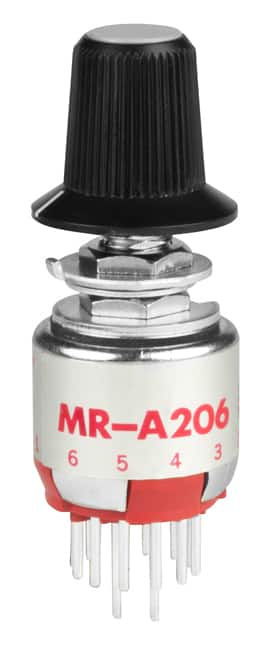

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MRAN206-BH
Description
Half-Inch Diameter Process Sealed Rotaries
Name
Rotary
Series
MR
Poles
DP6T
no positions
2~6
index stops
Adjustable
no decks
1
no poles per deck
2
contact timing
Non-Shorting (BBM)
Current Rating
250mA (AC)
Rating (AC)
125V
Rating (DC)
28V
Actuator Type
Knob
actuator length
14.30mm
angle of throw
30°
contact material
Copper
contact finish
Silver
Mounting Type
Panel Mount, Through Hole
Termination Style
PC Pin
Features
Process Sealed
depth behind panel
17.00mm
Rating
0.25
