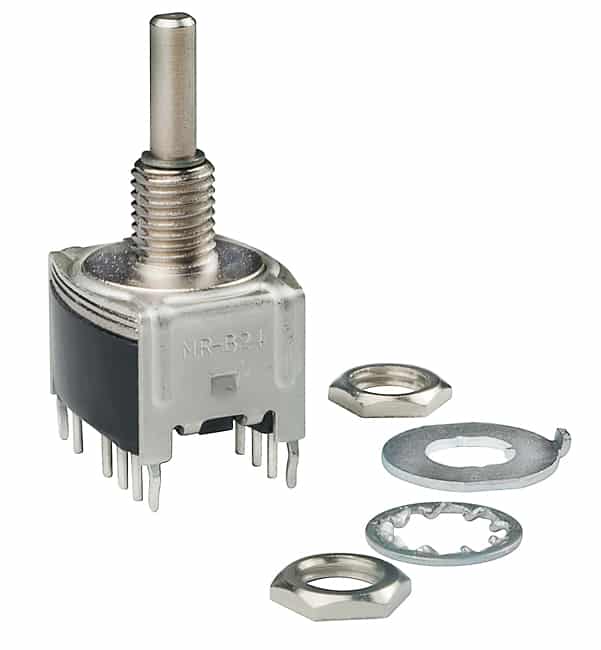

MRB24B

Miniature PCB Process Sealed Rotaries

MRB Series
Miniature PCB Process Sealed Rotaries

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MRB24B
Description
Miniature PCB Process Sealed Rotaries
Name
Rotary
Series
MRB
Poles
DP3T
no positions
3
index stops
Fixed
no decks
1
no poles per deck
2
contact timing
Non-Shorting (BBM)
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Flatted (3.17mm Dia)
actuator length
10.00mm
angle of throw
45°
contact material
Beryllium Copper
contact finish
Gold
Mounting Type
Panel Mount, Through Hole
Termination Style
PC Pin
Features
Sealed - Fully
depth behind panel
11.00mm
Rating
0.4
