MRB24H-A-AT535

Switch Rotary 3POS 0.4VA 28V

MRB Series
Switch Rotary 3POS 0.4VA 28V

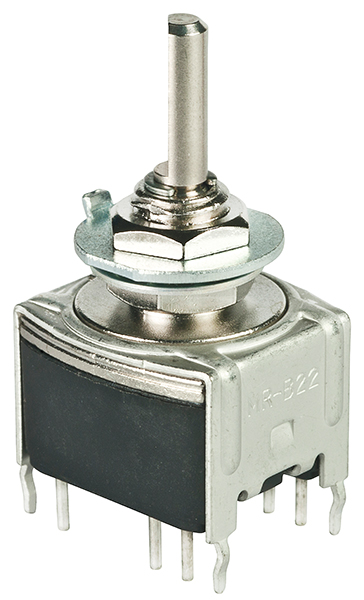

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MRB24H-A-AT535
Description
Switch Rotary 3POS 0.4VA 28V
Name
Rotary
Series
MRB
Poles
DP3T
index stops
Fixed
contact timing
Non-Shorting (BBM)
Current Rating
0.4VA (AC/DC)
Actuator Type
Flatted (3.17mm Dia)
actuator length
10.00mm
angle of throw
45°
contact material
Beryllium Copper
contact finish
Gold
Mounting Type
Panel Mount, Through Hole, Right Angle
depth behind panel
15.10mm
ingress protection
IP67
