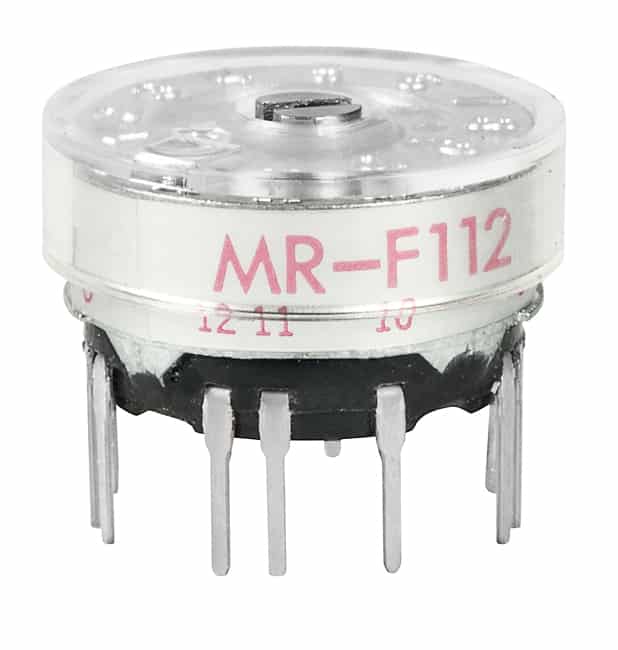

MRF112

Half-Inch Diameter Process Sealed Rotaries

MR Series
Half-Inch Diameter Process Sealed Rotaries

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MRF112
Description
Half-Inch Diameter Process Sealed Rotaries
Name
Rotary
Series
MR
Poles
SP12T
no positions
2 ~ 12
index stops
Adjustable
no decks
1
no poles per deck
1
contact timing
Non-Shorting (BBM)
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Screwdriver Slot
actuator length
Flush
angle of throw
30°
contact material
Phosphor Bronze
contact finish
Gold
Mounting Type
Through Hole
Termination Style
PC Pin
Features
Process Sealed
Rating
0.4
