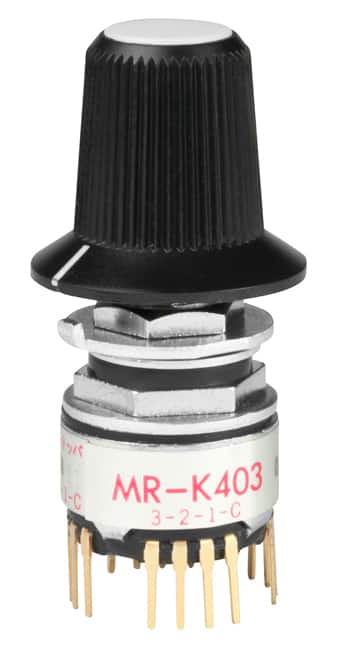

MRK403-BB

Half-Inch Diameter Process Sealed Rotaries

MR Series
Half-Inch Diameter Process Sealed Rotaries

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MRK403-BB
Description
Half-Inch Diameter Process Sealed Rotaries
Name
Rotary
Series
MR
Poles
4P3T
no positions
2 ~ 3
index stops
Adjustable
no decks
1
no poles per deck
4
contact timing
Non-Shorting (BBM)
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Knob
actuator length
14.30mm
angle of throw
30°
contact material
Phosphor Bronze
contact finish
Gold
Mounting Type
Panel Mount, Through Hole
Termination Style
PC Pin
Features
Process Sealed
depth behind panel
10.10mm
Rating
0.4
ingress protection
IP67
