General Specifications
Part No.

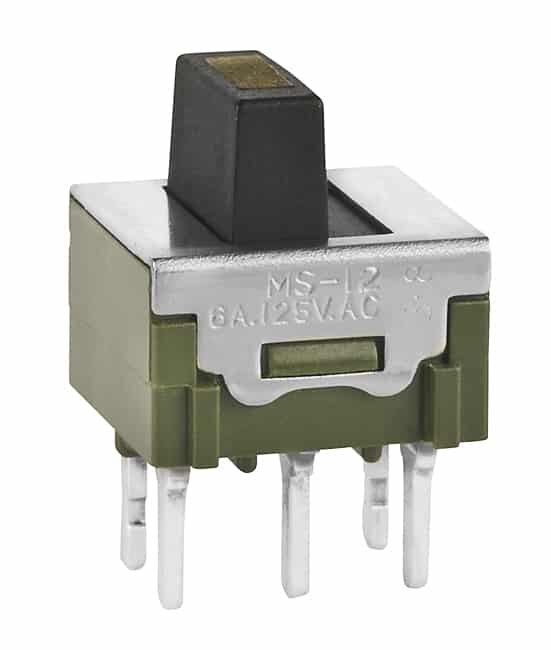

MS12LNW03E
Description
Miniature Illuminated Slides
Name
Slide
Series
MS
part status
Active
Poles
SPDT
contact timing
Non-Shorting (BBM)
Circuits
On-On
Current Rating
6A (AC)
Rating (AC)
125V
Actuator Type
Illuminated
actuator length
5.10mm
contact material
Silver Alloy
contact finish
Silver
Mounting Type
Through Hole
Termination Style
PC Pin
Features
Epoxy Sealed Terminals
Rating
6
Product Change Notices
No.
Current Part Num.
New Part Num.
Difference
New PN Available to Order
PDF
400
MS12LNW03E
Recommended Alternate
January 15, 2024
