Not recommended for new designs.
3D CAD Model
Download Specifications
Custom Assembly
Check Inventory
Sample Request Form
Environmental Compliance
Product Change NoticesGeneral Specifications
Part No.

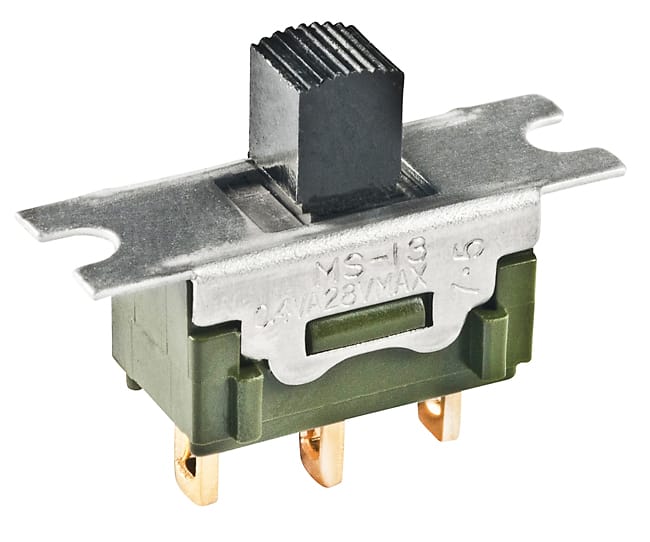

MS13AFG01
Description
Miniature Slides
Name
Slide
Series
MS
part status
Active
Poles
SPDT
contact timing
Non-Shorting (BBM)
Circuits
On-Off-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Standard
actuator length
5.10mm
contact material
Copper
contact finish
Gold
Mounting Type
Panel Mount
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
Rating
0.4
