Not recommended for new designs.
3D CAD Model
Download Specifications
Custom Assembly
Check Inventory
Sample Request Form
Environmental Compliance
Product Change NoticesGeneral Specifications
Part No.

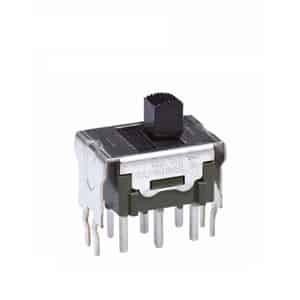

MS20ASW13
Description
Miniature Slides
Name
Slide
Series
MS
part status
Active
Poles
SP3T
contact timing
Non-Shorting (BBM)
Circuits
On-On-On
Current Rating
6A (AC)
Rating (AC)
125V
Actuator Type
Standard
actuator length
5.10mm
contact material
Silver Alloy
contact finish
Silver
Mounting Type
Through Hole
Termination Style
PC Pin
Features
Jumper needed to achieve triple throw
Rating
6
