MSN12ASG13

Miniature Slide

MS Series
Miniature Slide

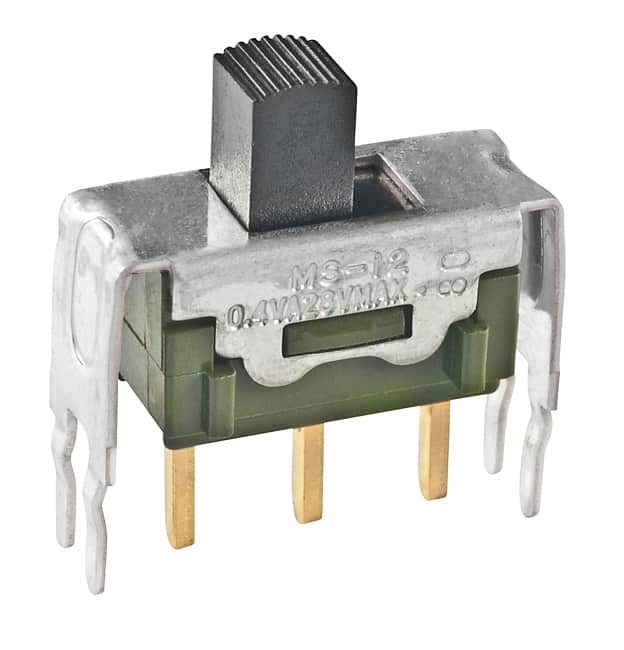

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MSN12ASG13
Description
Miniature Slide
Name
Slide
Series
MS
part status
Active
Poles
SPDT
contact timing
Non-Shorting (BBM)
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Standard
actuator length
5.10mm
contact material
Copper
contact finish
Gold
Mounting Type
Through Hole
Termination Style
PC Pin
Features
Epoxy Sealed Terminals
Rating
0.4
