MSN24BNW03

SWITCH SLIDE SP3T 3A 125V

MS Series
SWITCH SLIDE SP3T 3A 125V

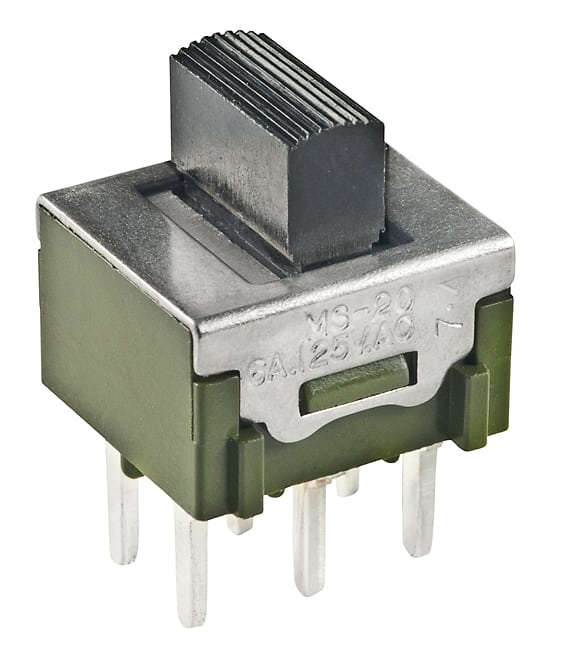

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MSN24BNW03
Description
SWITCH SLIDE SP3T 3A 125V
Name
Slide
Series
MS
part status
Active
Poles
SP3T
contact timing
Non-Shorting (BBM)
Circuits
On-On-On
Current Rating
3A (AC)
Rating (AC)
125V
Actuator Type
Standard
actuator length
5.10mm
contact material
Copper
contact finish
Silver
Mounting Type
Through Hole
Termination Style
PC Pin
Features
Jumper needed to achieve triple throw
Rating
3
