General Specifications
Part No.

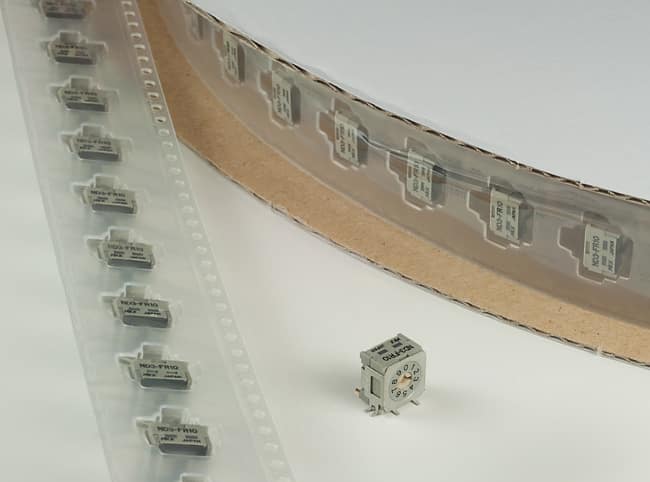

ND3FR10H-R
Description
8mm Process Sealed SMT DIP Rotaries
Name
DIP
Packaging
Tape & Reel (TR)
Series
ND3
Poles
BCD
no positions
10
Current Rating
100mA
Voltage Rating
5VDC
Actuator Type
Rotary for Tool
actuator level
Flush, Recessed
contact material
Beryllium Copper
contact finish
Gold
height above board
0.316" (8.03mm)
Mounting Type
Surface Mount, Right Angle
Termination Style
Gull Wing
pitch
0.050" (1.27mm), Half
washable
Yes
Features
Epoxy Sealed Terminals
Rating
0.1
