Not recommended for new designs.
3D CAD Model
Download Specifications
Custom Assembly
Check Inventory
Sample Request Form
Environmental Compliance
Product Change NoticesGeneral Specifications

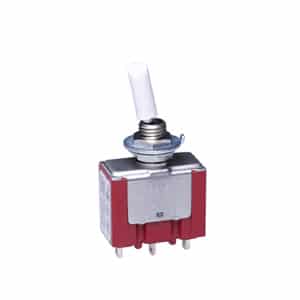

Part No.
P2012
Description
Internationally Approved Toggles
Name
Toggle
Series
P
Poles
SPDT
Circuits
On-On
Current Rating
10A (AC)
Rating (AC)
125V
Actuator Type
Standard Round with Cap
actuator length
13.00mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 6.35mm Dia
bushing thread
M6 x 0.75
Features
White Cap
Rating
10
