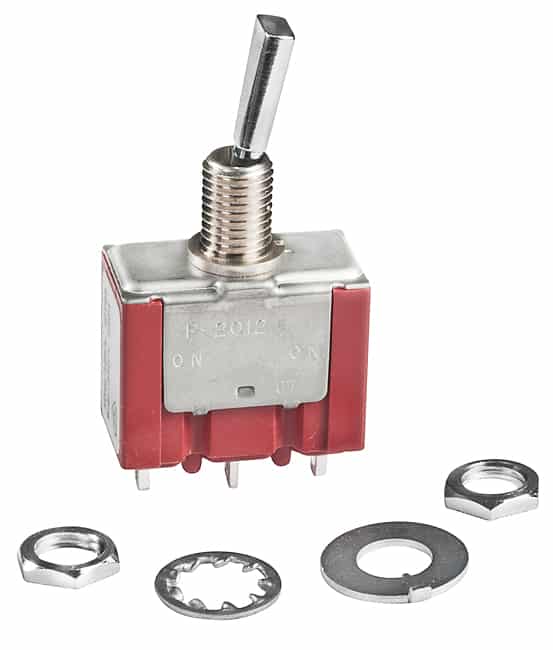

P2012E

Internationally Approved Rocker & Paddle

P Series
Internationally Approved Rocker & Paddle

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
P2012E
Description
Internationally Approved Rocker & Paddle
Name
Toggles
Series
P
Poles
SPDT
Circuits
On-On
Current Rating
10A (AC)
Rating (AC)
125V
Actuator Type
Flatted
actuator length
11.40mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 6.35mm Dia
bushing thread
M6 x 0.75
Rating
10
