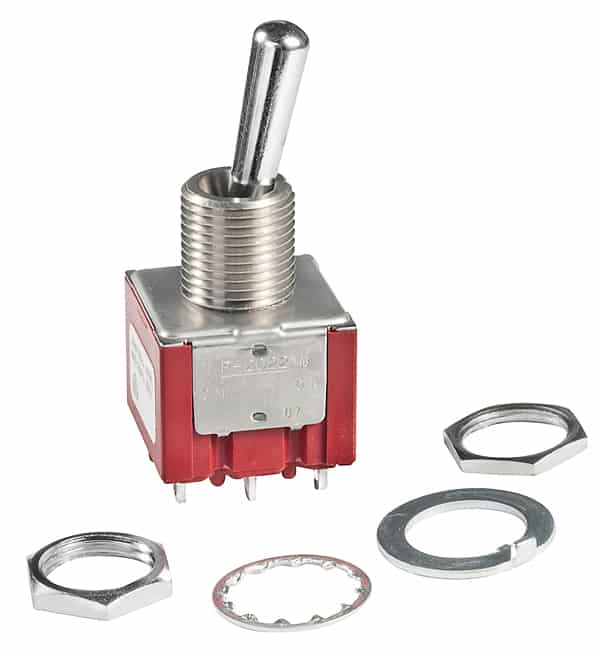

P2022BP

Internationally Approved Toggles

P Series
Internationally Approved Toggles

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
P2022BP
Description
Internationally Approved Toggles
Name
Toggle
Series
P
Poles
DPDT
Circuits
On-On
Current Rating
10A (AC)
Rating (AC)
125V
Actuator Type
Standard Round
actuator length
17.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
PC Pin
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
Rating
10
