Not recommended for new designs.
3D CAD Model
Download Specifications
Custom Assembly
Check Inventory
Sample Request Form
Environmental Compliance
Product Change NoticesGeneral Specifications

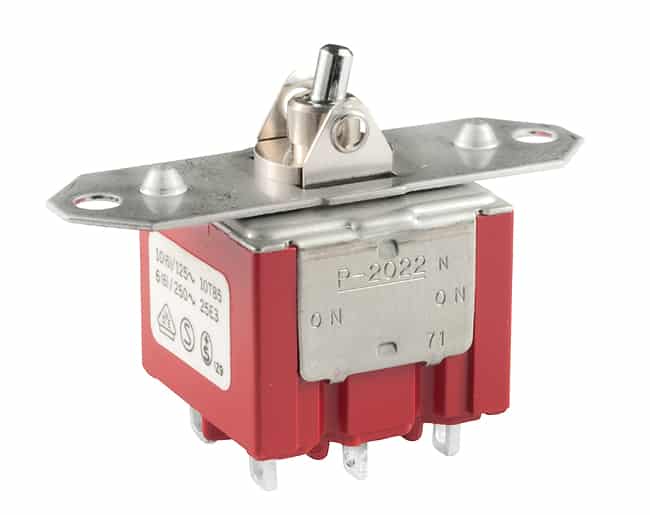

Part No.
P2022N
Description
Internationally Approved Rockers/Paddles
Name
Rocker
Series
P
Status
Active
Poles
DPDT
Circuits
On-On
Current Rating
10A (AC)
Rating (AC)
125V
Actuator Type
Actuator Arm, Cap Required
Actuator Marking
Varies by Cap
Mounting Type
Panel Mount, Flange
Termination Style
Solder Lug
panel cutout dimensions
Rectangular - 17.80mm x 10.10mm
Rating
10
Illumination
Non-Illuminated
