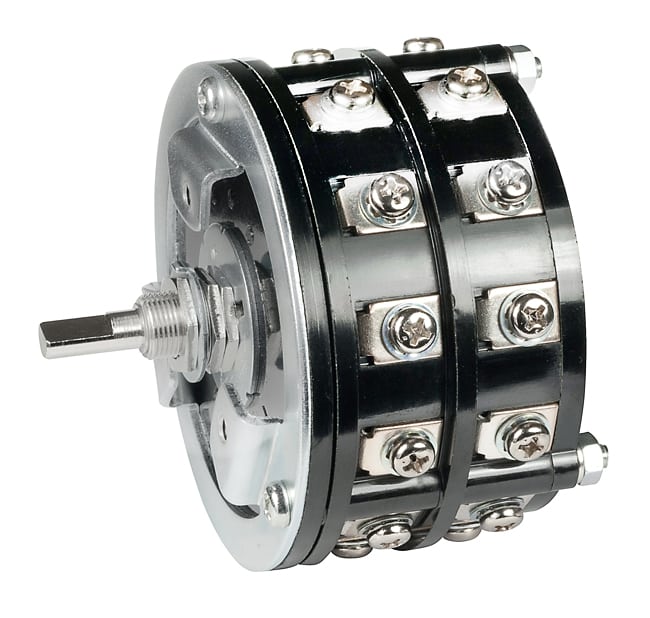

PS2N

Standard Size Rotaries

PS Series
Standard Size Rotaries

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
PS2N
Description
Standard Size Rotaries
Name
Rotary
Series
PS
Poles
SP11T
no positions
2 ~ 11
index stops
Adjustable
no decks
2
no poles per deck
1
contact timing
Non-Shorting (BBM)
Current Rating
30A (AC)
Rating (AC)
125V
Actuator Type
Flatted (6mm Dia)
actuator length
15.00mm
angle of throw
30°
contact material
Silver Alloy
Mounting Type
Panel Mount
Termination Style
Screw Terminal
depth behind panel
64.00mm
Rating
30
