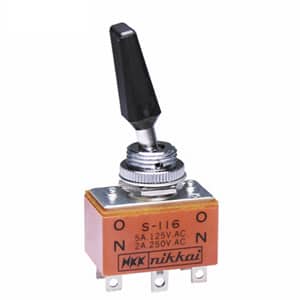

S116R

Low Capacity Standard Size Toggles

S Series
Low Capacity Standard Size Toggles

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
S116R
Description
Low Capacity Standard Size Toggles
Name
Toggle
Series
S
Poles
DPDT
Circuits
On-On
Current Rating
5A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Paddle
actuator length
29.00mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
Features
Black Actuator
Rating
5
