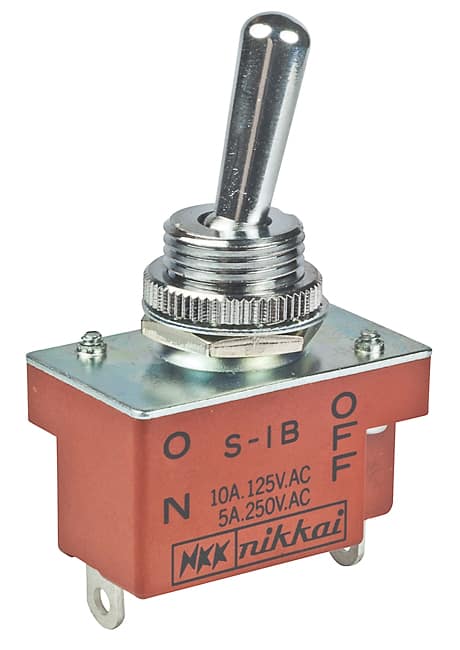

S1B

High Capacity Standard Size Toggle

S Series
High Capacity Standard Size Toggle

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
S1B
Description
High Capacity Standard Size Toggle
Name
Toggles
Series
S
Poles
SPST
Circuits
On-Off
Current Rating
5A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
17.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
Rating
5
