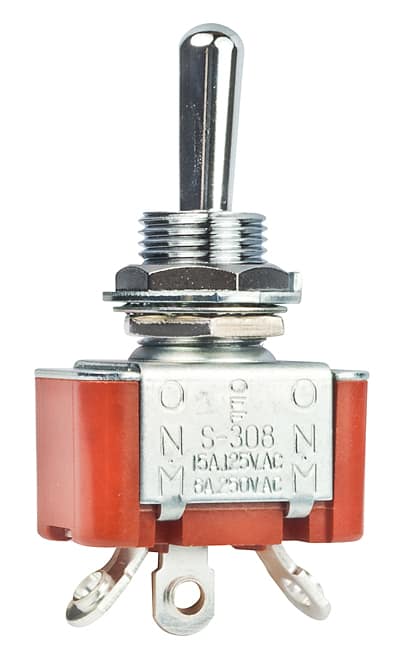

S308/328

Medium Capacity Standard Size Toggle

S300 Series
Medium Capacity Standard Size Toggle

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
S308/328
Description
Medium Capacity Standard Size Toggle
Name
Toggles
Series
S300
Poles
SPDT
Circuits
Mom-Off-Mom
Current Rating
15A (AC), 20A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
17.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
Features
Low Temperature Lubricant
Rating
15
