General Specifications
Part No.

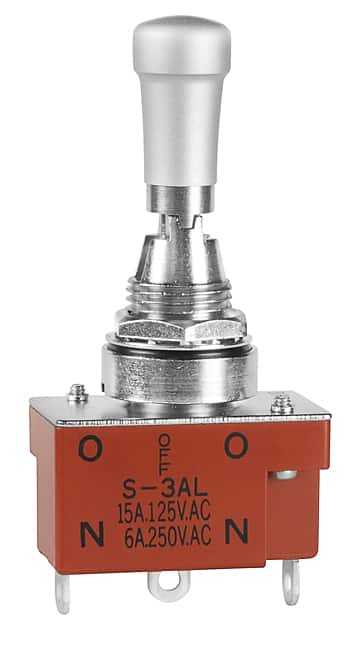

S3AL
Description
Medium Capacity Standard Size Panel Seal Toggles
Name
Toggle
Series
S
Poles
SPDT
Circuits
On-Off-On
Current Rating
15A (AC), 20A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Locking Lever
actuator length
23.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
ingress protection
IP67
Rating
15
