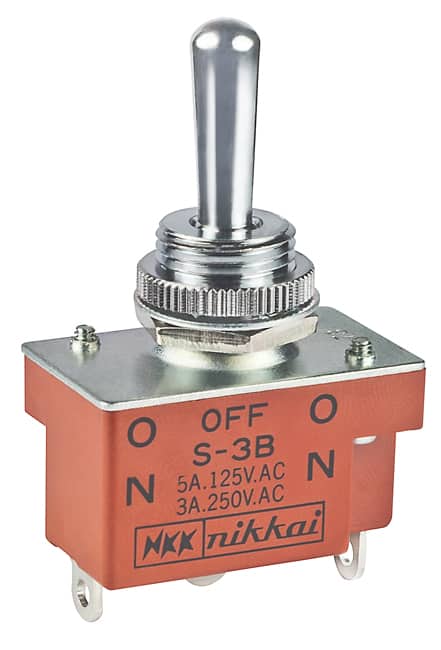

S3B

SWITCH TOGGLE SPDT 5A 125V

S Series
SWITCH TOGGLE SPDT 5A 125V

Not recommended for new designs.
General Specifications
Part No.
S3B
Description
SWITCH TOGGLE SPDT 5A 125V
Name
Toggle
Series
S
Poles
SPDT
Circuits
On-Off-On
Current Rating
5A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
17.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
Rating
5
